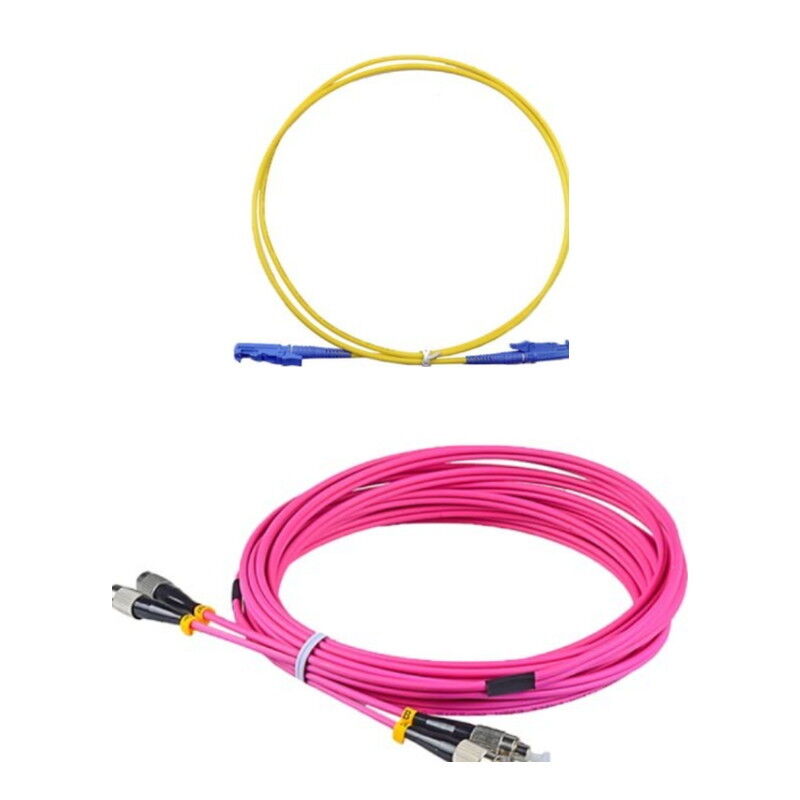

G657A2 Bend Insensitive Single Mode Fiber Optic Patch Cord with 7.5mm Minimum Bend Radius for FTTH MDU Applications

Merknaam:	WNRLN
Modelnummer:	OS2-BIF-SM-004
Moq:	10 stuks
Prijs:	USD 0.90-9.00 / Piece
Verpakking:	Individuele PE-zak met stofkappen, doos met WNRLN-merk, golfkarton van exportkwaliteit
Betalingsvoorwaarden:	T/T,L/C,PayPal,Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Certificering:

ISO 9001:2015, RoHS, CE, ITU-T G.657 Compliant

Vezeltype:

OS2 enkele modus (G657A1 / G657A2 buigongevoelig)

ITU-T-standaard:

G.657.A1 / G.657.A2-compatibel

Connectortypen:

Sc, LC, FC, St

Poolse type:

UPC / APC

Invoegverlies:

≤0,20dB Typisch, ≤0,30dB Max

Retourverlies (UPC):

≥50db

Retourverlies (APC):

≥60db

Buigradius (G657A1):

10 mm minimaal (1 slag, ≤0,75 dB bij 1550 nm)

Buigradius (G657A2):

7,5 mm minimaal (1 slag, ≤0,5 dB bij 1550 nm)

Kabeldiameter:

0.9mm / 2.0mm / 3.0mm

Jasmateriaal:

PVC / LSZH / OFNP / OFNR

Bedrijfsgolflengte:

1310nm / 1550nm

Bedrijfstemperatuur:

-40 ° C tot +75 ° C

Ferrule materiaal:

Zirkonia keramiek

Levering vermogen:

100.000 stuks per maand

Markeren:

G657A1 Bend Insensitive Fiber Patch Cord

SM OS2 SC LC FC Connector

FTTH Compact Bending Resistant Jumper

Productbeschrijving

G657A1 G657A2 Bend Insensitive Single Mode Fiber Optic Patch Cord SC LC FC ST for FTTH Data Center

G657A1 / G657A2 Bend Insensitive Single Mode Fiber Optic Patch Cord

ITU-T G.657 Compliant | 7.5mm Minimum Bend Radius | Macro-Bend Optimized | SC LC FC ST Connectors

7.5mm Minimum Bend Radius: G657A2 supports bends as tight as 7.5mm radius without significant signal degradation — ideal for MDU in-building wiring, tight corners, and high-density patching fields.
G652D Backward Compatible: G657A1/A2 fibers are fully compatible with standard G652D fiber — seamless splicing and connectorization with existing network infrastructure. Mode field diameter matched at 1310nm.
FTTH MDU Optimized: Specifically engineered for multi-dwelling unit in-building FTTH deployments where cables must navigate tight corners, small conduits, and crowded cable trays without performance loss.

G657A1 vs G657A2 vs G652D — Bend Performance Comparison

Parameter	G652D (Standard)	G657A1 (BIF)	G657A2 (Advanced BIF)
Min Bend Radius	30mm	10mm	7.5mm
Bend Loss (1 turn, 7.5mm R)	≥5.0dB	≤2.5dB	≤0.5dB
Bend Loss (1 turn, 10mm R)	≥3.0dB	≤0.75dB	≤0.1dB
G652D Compatible	N/A	✅ Full	✅ Full
Best Application	Long-haul / Metro	FTTH Drop / Last Mile	MDU / Data Center / Tight Routing

Applications

FTTH In-Building MDU

Multi-floor risers with tight 90-degree turns in small conduits. G657A2 handles bends that standard G652D cannot.

High-Density Data Center

Tight cable management in 1U and 2U patch panels. Reduced bend loss ensures consistent link budgets in crowded racks.

Fiber to the Room (FTTR)

Invisible fiber deployment along baseboards, door frames, and through wall corners without performance penalty.

Factory Direct — ITU-T G.657 Compliant

All bend insensitive fibers are 100% OTDR tested with macro-bend verification at 1550nm. Available in G657A1 or G657A2 with SC, LC, FC, ST connectors. Custom cable diameter, jacket material, and length. Contact us for OEM/ODM and bulk pricing.

ITU-T G.657 Compliant 100% Bend Tested ISO 9001 Factory Custom OEM/ODM
